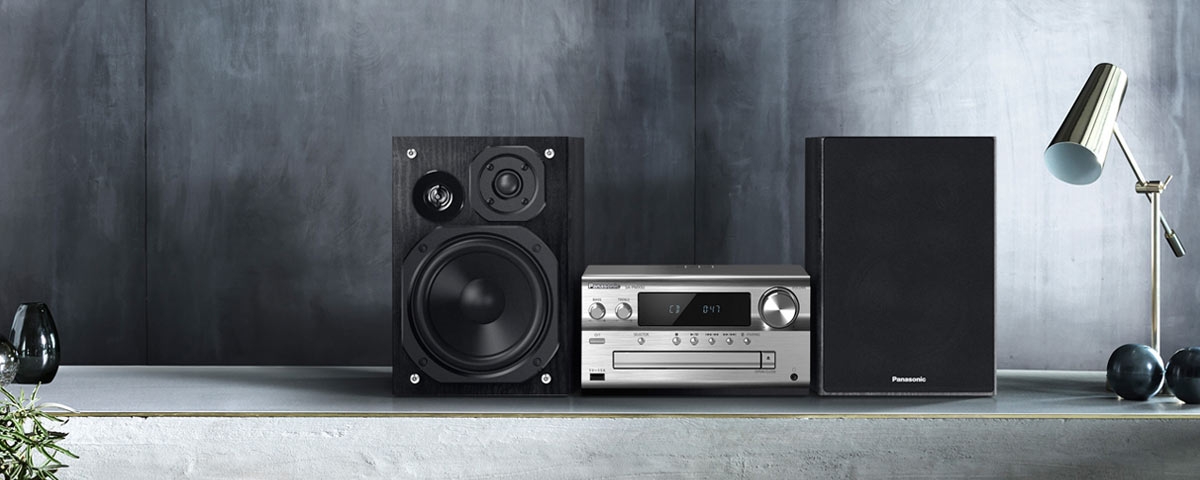

High-Resolution Bluetooth DAB+ Radio CD Micro Hi-Fi SC-PMX92
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
SC-PMX92GN-S
Polished High-Res Audio Performance
The PMX92 pushes audio boundaries with amazing sound quality, versatile connectivity and masterful design. The 3-way speaker design and LincsD-Amp provide rich sound from a variety of music sources, while the USB DAC port makes it easy to enjoy hi-res audio. AUX-IN Auto Play function allows it to work with various devices, and an Optical Input has been added for easy connection with your TV.
Features
High quality audio parts
Unlocking the full potential of Hi-Res sound
To get the best sound quality from today‘s Hi-Res audio formats, you need to use the best quality components. This is why Panasonic has left no stone unturned in sourcing only the finest materials for the PMX92 to ensure it’s built to make a genuine HiFi difference.
Top-grade audio aluminum electrolyte capacitors
Synthetic mica powder is blended into electrolytic paper, and copper clad steel wires are used for the lead wires in these audio aluminum electrolyte capacitors. The resulting sound is crisp and clear with a powerful presence.
Metallized polyester film capacitors
These film capacitors are designed specially for audio use, with excellent frequency response and temperature characteristics, using metal deposited electrodes.
Elegant, compact design
Aluminum is used in the main unit’s front panel, top panel, and sound volume dial, to provide a simple, high-grade appearance. The speaker box is made of high-quality lumber. This high-quality, universal design matches a wide range of room décor.
Specs
Size and Weight
- Height
- 114mm
- Width
- 211mm
- Depth
- 267mm
- Weight
- 2.8kg
The size of the speaker is H238 × W161 × D262 mm and its weight is approximately 2.6 kg.
High Resolution Music Quality
Wide Compatibility and Connection
AUX-IN Auto Play Smart Function
AUX-IN Auto Play for audio devices and streaming devices
AMPLIFIER
-
Amp Type
-
Lincs D-Amp™ (3rd generation)
-
-
RMS Output Power
-
Front Ch
-
60 W Per channel (3 ohms, 1 kHz, 10 % THD)
-
-
Total RMS Stereo mode power
-
120 W
-
-
SPEAKER SYSTEM
-
Bass Expand
-
Bass Reflex Port
-
-
Front Speaker
-
Type
-
3 Way, 3 Speaker system (Bass reflex)
-
-
Speaker Unit
-
Bamboo Charcoal PP 14 cm
Silk Dome Tweeter 1.9cm
Piezo Tweeter 1.5cm
-
-
CD / DVD
-
Playback Disc *1
-
CD-R / RW
-
-
Format
-
CD-DA / MP3
-
USB
-
USB Standard
-
USB 2.0 High-speed
-
-
Playback Format
-
DSD (2.8 MHz)*Not support 5.6 MHz, MP3, AIFF, AAC, FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
-
-
Playback
-
yes *2
-
-
Battery Charge
-
Other portable device (1.5 A)
-
-
USB-DAC function
-
Playback Format
-
DSD (2.8 MHz)*Not support 5.6 MHz, MP3, AIFF,FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
-
-
Player Application (Windows / Mac OS)
-
yes
-
-
RADIO
-
Auto Tuning
-
yes
-
-
Antenna Terminal
-
75 ohm unbalanced
-
-
Station Presets
-
FM
-
30 stations
-
-
DAB Plus
-
20 stations
-
-
NETWORK
-
AUX-In Auto Play
-
yes
-
-
Bluetooth
-
Version
-
Bluetooth® Ver 2.1 + EDR
-
-
Class
-
Class 2 (2.5mW)
-
-
Wireless audio playback
-
yes
-
-
Remote control
-
yes
-
-
Codec
-
SBC, AAC
-
-
Multi-Pairing
-
yes (MAX 8 Devices)
-
-
SMARTPHONE APP
-
Panasonic Music Streaming App
-
Supported OS
-
iOS*3(Bluetooth), Android*3(Bluetooth)
-
-
SOUND FUNCTION
-
Super Sound EQ, Super Bass Sound
-
D.Bass
-
-
Surround
-
yes
-
-
XBS Master
-
yes
-
-
High-Res AUDIO
-
yes
-
-
EQ
-
Preset EQ
-
4 Preset
-
-
Manual EQ
-
Bass / Treble
-
-
-
Re-Master
-
Bluetooth Re-Master
-
yes
-
-
TERMINALS
-
USB Port
-
USB Type-A x1 / USB Type-B x1
-
-
Audio IN
-
RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM)
-
-
Audio OUT
-
Phones (3.5 mm)
-
-
Speaker Terminal
-
Screw type
-
GENERAL
-
Power Supply
-
AC 220 - 240 V, 50 Hz
-
-
Dimmer
-
yes
-
-
Auto Off
-
yes
-
-
Power Consumption
-
Normal Use
-
40 W*4
-
-
Normal Standby
-
0.35 W*4
-
-
Bluetooth Standby
-
0.45 W*4
-
-
-
Timer
-
Sleep
-
yes
-
-
Clock
-
yes
-
-
Play Timer
-
yes
-
-
DIMENSIONS, WEIGHT
-
Main Unit
-
Dimensions (W x H x D)
-
211 x 114 x 267 mm
-
-
Weight
-
2.8 kg
-
-
-
Speaker Unit
-
Dimensions (W x H x D)
-
161 x 238 x 262 mm
-
-
Weight
-
2.6 kg
-
-
NOTIFICATIONS
-
NOTE
-
*1 Playability may vary depending on the contents, discs and quality of the recording.
*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc.) using a USB extension cable.
*3 Download on the App Store. Download on Google Play™.
*4 Specifications are subject to change without notice. All numbers given here are approximate.
-
-
LEGAL NOTICE:
-
Recording and playback of content on this (or any other) device may require permission from the copyright owner. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright law in your country.
-
-
TRADEMARK NOTICE:
-
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google Play is a trademark of Google Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Used with permission. AllPlay is a trademark of Qualcomm Connected Experiences, Inc., registered in the United States and other counties. Used with permission.
-
