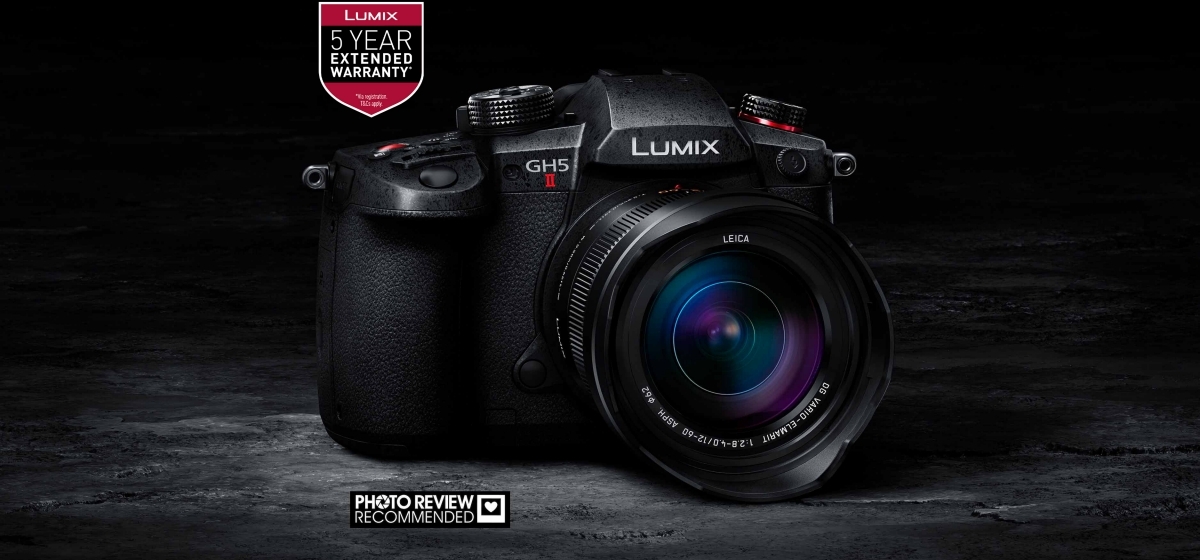

4K 60p/50p 10-bit Video Micro Four Thirds Camera DC-GH5M2GN

Price (RRP)$ 2,099.00

Buy

DC-GH5M2GN

Unrivalled Photo, Video & Streaming Hybrid

The LUMIX GH5M2 MFT Camera improves on the original with C4K 60p/50p 10-bit video recording, enhanced autofocus capabilities, live streaming capability, anti-reflection coated imaging sensor and many more enhanced features.

Add to WishlistRemove from Wishlist

DC-GH5M2GN

Price (RRP)2,099.00

Buy

Features

For The Modern Content Creator

Uncompromising versatility from a compact and lightweight, weather resistant body equips all creators including YouTube vloggers, and professional videographers with the ability to turn their creative vision into reality.

Enhanced 20.3MP MOS Sensor with AR Coating

The GH5M2 features a 20.3MP MOS sensor enhanced with an Anti-Reflection (AR) coating for uncompromising image detail and superior colour reproduction for both still images and video.

Learn more about the GH5M2 MOS Sensor

Enhanced 20.3MP MOS Sensor with AR Coating

5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser

The GH5M2 improves on its image sharpness and video stability with a 5-axis Dual I.S. 2 Image Stabiliser that combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops worth of correction.*

*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser

C4K/4K 60p/50p 10-bit Internal/External Recording

Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported for maximum image quality and post-production versatility.

* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Learn more about GH5M2 Video Performance

C4K/4K 60p/50p 10-bit Internal/External Recording

Unlimited Video Recording, Multiple Modes

The GH5M2 is built with cinema, broadcasting, live streaming and other professional applications in mind with unlimited recording offered on all frame rate and quality settings.

* On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop in C4k/4K60p/50p 10-bit and Anamorphic mode automatically to protect the camera.

Learn more about GH5M2 Video Performance

Unlimited Video Recording, Multiple Modes

V-Log L Pre-Installed

The LUMIX GH5M2 delivers 12 stops of dynamic range thanks to the pre-installed V-Log L colour profile. Level up your captured footage for maximum cinematic effect or colour match footage from another camera with seamless workflow integration.

Learn more about GH5M2 Video Performance

Selectable live stream methods

Wireless live streaming / USB-tethering (RTMP/RTMPS)

Easy wireless live streaming (RTMP/RTMPS protocol) by simply setting it up with the LUMIX Sync app (Android/iOS). Firmware version 1.1 adds the USB tethering function, which allows you to connect the camera to your smartphone via USB cable for live streaming. This makes it easier to ensure stable communication speed even in environments with a lot of radio interference and will enable streaming in 4K 30p/25p.

･Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.
･Since the transmission speed of live streaming varies depending on the Internet environment, smartphone performance, etc., we recommend that you conduct a transmission test in advance.
･Android and Google Play are trademarks or registered trademarks of Google Inc.
･IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

Settings Guide (WEB/PDF)

Wireless live streaming / USB-tethering (RTMP/RTMPS)

Wired live streaming (RTP/RTSP)

With Firmware version 1.1, IP streaming via wired LAN connection can be selected, increasing the convenience in indoor environments where highly stable communication is possible. By connecting the camera to a PC with a wired LAN cable, it is possible to control multiple cameras or stream high quality video and audio up to 4K 60p/50p. H.264 and H.265 codecs can be selected.

*A commercially available USB ethernet adaptor is required to convert the DC-GH5M2's USB Type C terminal to a LAN terminal. Compatibilities of USB ethernet adapter: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

Operating Instructions

USB Power Supply / Power Charging

Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera. When used in combination with the separately sold battery charger DMW-BTC15 (USB Power Delivery standard compliant), the battery can be charged while simultaneously supplying power.*

* Battery must be installed in camera and retain some charge for feature to work.

Learn More

Autofocus Featuring AI Technology

High-speed, high-precision autofocus is combined with deep learning artificial intelligence technology for near-instant recognition of human faces, eyes, heads and bodies. An animal recognition mode has also been added for superior accuracy in pet and wildlife photography.

Supports a Wide Range of Production Needs

With a compact, all-weather body, versatile photo and video performance suited to a wide range of creative needs and untethered live streaming functionality, the LUMIX GH5M2 is built for modern creatives who need to reach a diverse audience with beautiful, impactful stories.

Learn more about GH5M2 Features

Supports a Wide Range of Production Needs

Get Inspired

Specs

Photo of 4K 60p/50p 10-bit Video Micro Four Thirds Camera DC-GH5M2GN

Size and Weight

Height: 98.1mm

Width: 138.5mm

Depth: 87.4mm

Weight: 727g

All values are approximate. Weight with SD card and battery. Lens is excluded. Dimensions exclude protrusions.

Micro Four Thirds System Standard
20.3 Megapixels
4K Video Recording Capability
V-Log L
5-Axis Dual I.S. 2 (Image Stabilizer)
Live Streaming
Wi-Fi
Bluetooth
1840k-dot Free-angle Monitor
3680k-dot OLED Live View Finder
Splash, Dust and Freeze-resistant
HEVC Advance

20.3MP Digital Live MOS Sensor with AR coating

C4K/4K 30p/25p/24p 4:2:2 10-bit video, V-Log L and Unlimited Recording Time

5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser

Wireless Live Streaming with RTMP/RTMPS Protocol Compatibility

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- Micro Four Thirds mount

IMAGE SENSOR

Type
- Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels
- 20.33 megapixels / 21.77 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Colour filter
- 4:3 / Primary colour filter
Dust reduction system
- Image sensor shift type

LATITUDE

12 stops (V-Log L)

STILL IMAGE

Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW
- 6K PHOTO (*¹) / 4K PHOTO (*¹)
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels)
- 4:3
  - 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
- 3:2
  - 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
- 16:9
  - 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
- 1:1
  - 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Colour space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / Pixel by Pixel
MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94Hz [C4K] 4096x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [4K] 3840x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [Anamorphic 6K] 4992x3744 (4:3)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [C4K] 4096x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [4K] 3840x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [Anamorphic 6K] 4992x3744 (4:3)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [C4K] 4096x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [4K] 3840x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [Anamorphic 6K] 4992x3744 (4:3)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [FHD] 1920x1080
  - 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4 (*¹)
- 59.94Hz [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz -
  - -

VARIABLE FRAME RATE

MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94Hz [C4K] 4096x2160
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [4K] 3840x2160
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [C4K] 4096x2160
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)　
- 50.00Hz [4K] 3840x2160
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

STREAMING

Wi-Fi
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
USB Tethering (*⁴)
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [4K] 3840x2160
  - 29.97p, 12.5Mbps (H.264)
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [4K] 3840x2160
  - 25.00, 12.5Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
Wired LAN (*⁴)
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [4K] 3840x2160
  - 59.94p, 50Mbps / 25Mbps (H.265)
    59.94p, 50Mbps / 25Mbps (H.264)
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [4K] 3840x2160
  - 50.00p, 50Mbps / 25Mbps (H.265)
    50.00p, 50Mbps / 25Mbps (H.264)
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (7.5cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range
- EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Focus Ring Control
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720° (*⁴) / 1080°/ Maximum (*⁴)) *When a compatible lens is attached.
Others
- Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Centre Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
ISO sensitivity (Standard output sensitivity)
- Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
  Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILISATION SYSTEM

Image sensor shift type (5-axis / 6.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

Dual I.S. (6.5-stop* Dual I.S. 2 compatible)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Colour temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
  Motion picture: 1/16,000 - 1/25
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, colour temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- Electronic shutter
  - AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
- RAW / RAW+JPEG: More than 108 images
  JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)
  *When recording is performed under the test conditions specified by Panasonic.

6K PHOTO (¹) / 4K PHOTO (¹)

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

LIVE VIEW COMPOSITE (*⁴)

TIME LAPSE SHOT

STOP MOTION ANIMATION

FLASH

Flash type
- TTL External Flash (sold separately)
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/250 second
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine*
*For photos only.

MOTION PICTURE FUNCTION

Master pedestal level
- 31 steps
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope
- Selectable
LUT view assist
- Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan
- Yes
Time code
- Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Colour bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
Knee control
- Yes (in Like709 mode)
Other functions
- Red REC Frame Indicator, Streaming Blue Frame Indicator,

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabiliser / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabiliser / E-Stabilisation (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

PRINT

PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI (*²)
- HDMI
  - HDMI TypeA
    Audio: Stereo
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
    Down Convert: Auto / 4K / 1080p / 1080i / OFF
- Playback
  - 59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
    50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
    24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
Remote input
- φ2.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
XLR microphone
- Yes with DMW-XLR1 (sold separately)
Speaker
- Monaural
Headphone output
- φ3.5mm
SD card slot
- Slot 1, Slot 2

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
  Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060
  MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060
  MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
Battery grip
- DMW-BGGH5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
Weight
- Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body)
  Approx. 647g / 1.43 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature (*³)
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- Recording
  - LUMIX Sync
    ・ This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
    https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

    LUMIX Network Setting Software
    ・ This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software.
    https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac)

    LUMIX Tether
    ・ This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
    http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
- Playback / Editing
  - ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
    http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-GH5M2 Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder

  DC-GH5M2L Kit / DC-GH5M2M Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, Lens Cap, Lens Hood, Lens Rear Cap

  ・ The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*¹) About motion picture recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*²) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

(*³) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

(*⁴) Firmware must be updated to version 1.1.

Open a new page for printing

Customer Reviews

READ AND WRITE REVIEWS

Accessories

Lenses

H-H014A

LUMIX G 14mm / F2.5 II ASPH.

H-H020A

LUMIX G 20mm / F1.7 Ⅱ ASPH.

H-HS030

LUMIX G MACRO 30mm / F2.8 ASPH. / MEGA O.I.S.

H-HS043

LUMIX G 42.5mm / F1.7 ASPH. / POWER O.I.S.

H-E08018

LEICA DG VARIO-ELMARIT 8-18mm / F2.8-4.0 ASPH.

H-X1025

LEICA DG VARIO-SUMMILUX 10-25mm/F1.7 ASPH.

H-ES12060

LEICA DG VARIO-ELMARIT 12-60mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-ES50200

LEICA DG VARIO-ELMARIT 50-200mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-RS100400

LEICA DG VARIO-ELMAR 100-400mm / F4.0-6.3 ASPH. / POWER O.I.S.

H-X012

LEICA DG SUMMILUX 12mm / F1.4 ASPH.

H-X015

LEICA DG SUMMILUX 15mm / F1.7 ASPH.

H-XA025

LEICA DG SUMMILUX 25mm / F1.4 II ASPH.

H-NS043

LEICA DG NOCTICRON 42.5mm / F1.2 ASPH. / POWER O.I.S.

H-ES045

LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S.

H-ES200

LEICA DG ELMARIT 200mm / F2.8 / POWER O.I.S.

H-HSA12035

LUMIX G X VARIO 12-35mm / F2.8 II ASPH. / POWER O.I.S.

H-HSA35100

LUMIX G X VARIO 35-100mm / F2.8 II / POWER O.I.S.

H-F007014

LUMIX G VARIO 7-14mm / F4.0 ASPH.

H-FS12032

LUMIX G VARIO 12-32mm / F3.5-F5.6 ASPH. / MEGA O.I.S.

H-FS12060

LUMIX G VARIO 12-60mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-PS14042

LUMIX G X VARIO PZ 14-42mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-FSA14140

LUMIX G VARIO 14-140mm / F3.5-5.6 II ASPH. / POWER O.I.S.

H-FS35100

LUMIX G VARIO 35-100mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-FS45150

LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-PS45175

LUMIX G X VARIO PZ 45-175mm / F4.0-5.6 ASPH. / POWER O.I.S.

H-FSA45200

LUMIX G VARIO 45-200mm / F4.0-5.6 II / POWER O.I.S.

H-FSA100300

LUMIX G VARIO 100-300mm / F4.0-5.6 II / MEGA O.I.S.

H-F008

LUMIX G FISHEYE 8mm / F3.5
