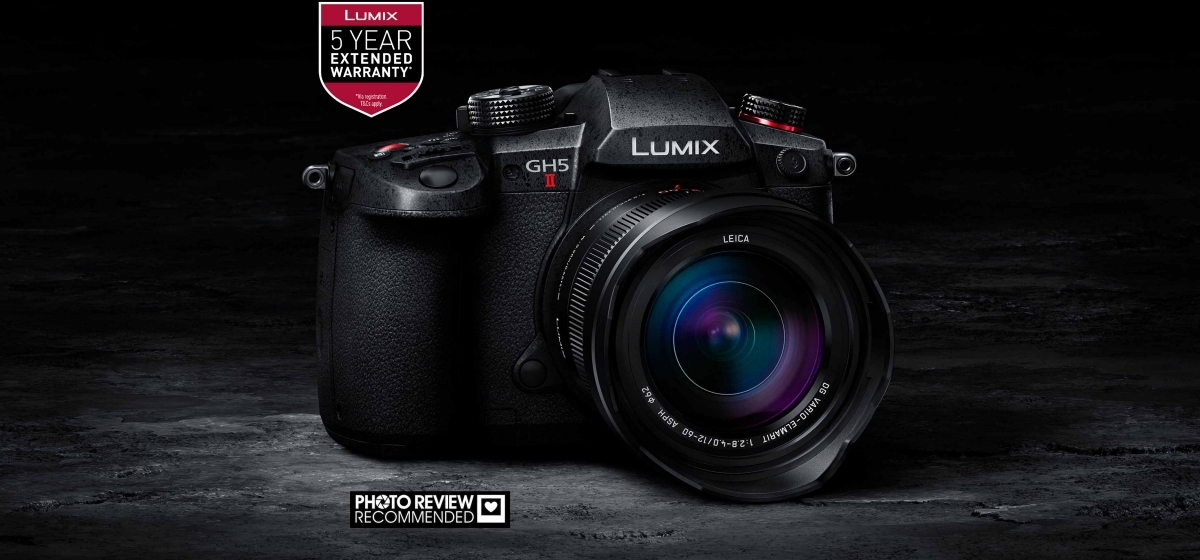

4K 60p/50p 10-bit Video Micro Four Thirds Camera DC-GH5M2LPRO

Price (RRP)$ 3,599.00

Buy

Shop Bar

DC-GH5M2LPRO

Unrivalled Photo, Video & Streaming Hybrid

The LUMIX GH5M2 MFT Camera improves on the original with C4K 60p/50p 10-bit video recording, enhanced autofocus capabilities, live streaming capability, anti-reflection coated imaging sensor and many more enhanced features.

Includes 12-35mm / F2.8 LEICA DG lens H-ES12035GC

Add to WishlistRemove from Wishlist

DC-GH5M2LPRO

Price (RRP)3,599.00

Buy

Shop Bar

Features

For The Modern Content Creator

Uncompromising versatility from a compact and lightweight, weather resistant body equips all creators including YouTube vloggers, and professional videographers with the ability to turn their creative vision into reality.

Enhanced 20.3MP MOS Sensor with AR Coating

The GH5M2 features a 20.3MP MOS sensor enhanced with an Anti-Reflection (AR) coating for uncompromising image detail and superior colour reproduction for both still images and video.

Learn More about the GH5M2 MOS Sensor

Enhanced 20.3MP MOS Sensor with AR Coating

5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser

The GH5M2 improves on its image sharpness and video stability with a 5-axis Dual I.S. 2 Image Stabiliser that combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops worth of correction.*

*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

5-Axis, 6.5-stop Dual I.S. 2 Image Stabiliser

C4K/4K 60p/50p 10-bit internal/external recording

Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported for maximum image quality and post-production versatility.

* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Learn more about the GH5M2 Video Performance

C4K/4K 60p/50p 10-bit internal/external recording

Unlimited video recording, multiple modes

The LUMIX GH5M2 offers the multiple recording modes utilized for cinema, broadcasting, and other professional applications. In addition to C4K/4K 60p/50p 4:2:0 10-bit and C4K/4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps recording, unlimited recording is offered on all settings.*

*On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop in C4K/4K 60p/50p 10-bit and Anamorphic mode automatically to protect the camera.

Unlimited video recording, multiple modes

V-Log L Pre-Installed

The LUMIX GH5M2 delivers 12 stops of dynamic range thanks to the pre-installed V-Log L colour profile. Level up your captured footage for maximum cinematic effect or colour match footage from another camera with seamless workflow integration.

V-Log/V-Gamut and LUTs
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html

Learn More

Selectable live stream methods

Wireless live streaming / USB-tethering (RTMP/RTMPS)

Easy wireless live streaming (RTMP/RTMPS protocol) by simply setting it up with the LUMIX Sync app (Android/iOS). Firmware version 1.1 adds the USB tethering function, which allows you to connect the camera to your smartphone via USB cable for live streaming. This makes it easier to ensure stable communication speed even in environments with a lot of radio interference and will enable streaming in 4K 30p/25p.

･Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.
･Since the transmission speed of live streaming varies depending on the Internet environment, smartphone performance, etc., we recommend that you conduct a transmission test in advance.
･Android and Google Play are trademarks or registered trademarks of Google Inc.
･IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

Setting Guide (WEB/PDF)

Wireless live streaming / USB-tethering (RTMP/RTMPS)

Wired live streaming (RTP/RTSP)

With Firmware version 1.1, IP streaming via wired LAN connection can be selected, increasing the convenience in indoor environments where highly stable communication is possible. By connecting the camera to a PC with a wired LAN cable, it is possible to control multiple cameras or stream high quality video and audio up to 4K 60p/50p. H.264 and H.265 codecs can be selected.

*A commercially available USB ethernet adaptor is required to convert the DC-GH5M2's USB Type C terminal to a LAN terminal. Compatibilities of USB ethernet adapter: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

Operating Instructions

USB Power Supply / Power Charging

Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera. When used in combination with the separately sold battery charger DMW-BTC15 (USB Power Delivery standard compliant), the battery can be charged while simultaneously supplying power.*

* Battery must be installed in camera and retain some charge for feature to work.

Learn More

Autofocus Featuring AI Technology

High-speed, high-precision autofocus is combined with deep learning artificial intelligence technology for near-instant recognition of human faces, eyes, heads and bodies. An animal recognition mode has also been added for superior accuracy in pet and wildlife.

Supports a Wide Range of Production Needs

With a compact, all-weather body, versatile photo and video performance suited to a wide range of creative needs and untethered live streaming functionality, the LUMIX GH5M2 is built for modern creatives who need to reach a diverse audience with beautiful, impactful stories.

Learn more about GH5M2 Features

Supports a Wide Range of Production Needs

Get Inspired

Specs

Photo of 4K 60p/50p 10-bit Video Micro Four Thirds Camera DC-GH5M2LPRO

Size and Weight

Height: 98.1mm

Width: 138.5mm

Depth: 87.4mm

Weight: 727g

All values are approximate. Weight with SD card and battery. Lens is excluded. Dimensions exclude protrusions.

Micro Four Thirds System Standard
20.3 Megapixels
4K Video Recording Capability
V-Log L
5-Axis Dual I.S. 2 (Image Stabiliser)
Live Streaming
Wi-Fi
Bluetooth
1840k-dot Free-angle Monitor
3680k-dot OLED Live View Finder
Splash, Dust and Freeze-resistant
HEVC Advance

20.3-megapixel Digital Live MOS sensor with AR coating

C4K/4K 60p/50p 10-bit internal/external simultaneous recording

C4K/4K 30p/25p/24p 4:2:2 10-bit video, V-Log L and unlimited recording time

Wireless live streaming

STREAMING

Wi-Fi
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
USB Tethering (*⁴)
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [4K] 3840x2160
  - 29.97p, 12.5Mbps (H.264)
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [4K] 3840x2160
  - 25.00, 12.5Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
Wired LAN (*⁴)
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [4K] 3840x2160
  - 59.94p, 50Mbps / 25Mbps (H.265)
    59.94p, 50Mbps / 25Mbps (H.264)
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [4K] 3840x2160
  - 50.00p, 50Mbps / 25Mbps (H.265)
    50.00p, 50Mbps / 25Mbps (H.264)
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range
- EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Focus Ring Control
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720° (*⁴) / 1080°/ Maximum (*⁴)) *When a compatible lens is attached.
Others
- Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

6K PHOTO (¹) / 4K PHOTO (¹)

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

LIVE VIEW COMPOSITE (*⁴)

TIME LAPSE SHOT

Note

(*1) About motion picture recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*2) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

(*3) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

(*4) Firmware must be updated to version 1.1.
